PRODUCTS
Conveyor Care Products
BELT SCRAPERS
Kaveri is a Leading manufacturer of engineered belt cleaning system & has developed fundamental principles in belt cleaners which take a new approach in cleaning elements.
Belt Scrapers are used in bulk material handling belt conveyors to avoid material carryback and reduce spillage. Clean belts help prevent material build up on snub pulley & return idlers, thereby reducing maintenance and downtime. Kaveri Belt Scrapers are a cost effective solution for efficient belt cleaning.
Our belt cleaners are Segmented type with individual rubberized elastomounts to take the shape of the belt contour. The scrapers are self adjusting type and have multi-tip which results in efficient belt cleaning.
Cleaning Tip contact angle is critical to ensure better cleaning efficiency and increased life of the cleaner tip and conveyor belt. Our “Lead Edge” design ensures that the cleaning angle is atleast 90 deg.
We manufacture different types of Belt Scrapers for both external and internal belt cleaning.
FUNDAMENTAL PRINCIPLE
Conventional - less than 90- resulting in more frictional force- fast tip wear out and hence less cleaning eff iciency.
Kaveri - more than 90 - resulting in negligible frictional force-longer tip life and higher cleaning efficiency.
Kaveri manufacture different types of Belt Scrapers
PRIMARY SCRAPER
- Used as a pre-scrapper for external belt cleaning.
- Brakes and removes Coarse lumpy material.
- Strongly recommended in case material handled is wet and sticky.
- Primary Belt Scrapper is installed such that the cleaning edge is between 0 & 15 degree on head Pulley.
- Option of having the Lead Edge Cleaner Tips made of Polyurethane, Tungsten Carbide, Tool Steel or Stainless Steel depending on application.
SECONDARY SCRAPER
- Used as Main Scraper for maximum cleaning of external side
- Located after Tangential Take off Point between head and snub pulley
- Strongly recommended in case material handled is wet and sticky.
- Option of having the Lead Edge Cleaner Tips made of Tungsten Carbide, Tool Steel or Stainless Steel depending on application
- Suitable for uni direction Conveyors
REVERSIBLE SCRAPER
- Used as Main Scraper for external side of reversible conveyors
- Located after the Tangential Take off Point from head pulley
- Two scrapers required, one for each end
- Option of having the Cleaner Tips made of Tungsten Carbide, Tool Steel or Stainless Steel depending on application

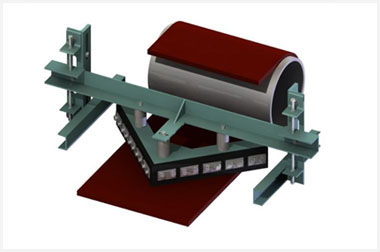

‘V’ PLOUGH INTERNAL SCRAPER
- Used for internal cleaning of belt, to prevent material from going in between belt and tail pulley
- Located near the Tail pulley on the inner side of the belt. Full protection for pulley and belt
- Segmented Cleaner blocks of polymer/ rubber/ polyurethane depending on application.
- V plough for Unidirection belts.
‘D’ PLOUGH INTERNAL SCRAPER
- Used for internal cleaning of belt, to prevent material from going in between belt and tail pulley.
- Located near the Tail pulley on the inner side of the belt.Full protection for pulley and belt
- Segmented Cleaner blocks of polymer/ rubber/ polyurethane depending on application
- D plough for reversible belts
SALIENT FEATURES
- Highly abrasion resistant blades for all types of material conveyed
- Suitable for all belt widths and speeds
- Excellent durability
- Low space requirements due to compact design
- Suitable for reversible operation
- Increased conveyor operation efficiency
- Longer belt life
- Nil material wastage
- Results in good environment
ROTARY BELT SCRAPER
Kaveri Rotary Belt Scraper are engineered for belts handling Calcinated materials like Clinker, Coke, Alumina and other fine powdery substances which are susceptible to thermal cracks, resulting in fine powder getting stuck between the cracks, and falling throughout the length of the conveyor, due to flappring of the belt.
KAVERI Rotary Belt Scraper Consists of a special brush arrangement designed for fitment below the Head Pulley on the return side to enable the brushed off material to fall into the discharge chute. It consists of a Motorised Power Driven shaft supported on Anti-Friction bearing blocks, to which brush rolls are fitted. The direction of rotation is opposite to that of the return belt travel.
The V-Belt drive ensures that right peripheral speed of the Rotary Scraper can be achieved to get maximum cleaning efficiency.
SALIENT FEATURES- Very effective for CLIP JOINT / THERMAL CRACKED belts
- Protects environment and No health hazard
- Protects Idler Rollers and increases the life of conveyor belt
- Suitable for all belts
- Motorised V Belt Drive type
- Segmented and self-locking brushes
- Easy to fit and remove
